💧 AUTOMATED MAINS WATER BACKUP

I-RAIN® Top-up Device

High-volume mechanical water refill system engineered to maintain minimum rainwater tank levels automatically from municipal supply during low rainfall periods.
2 – 150 PSI
Working Pressure
DN20-DN50
Standard Fitment
Zero Power
Mechanical Reliability

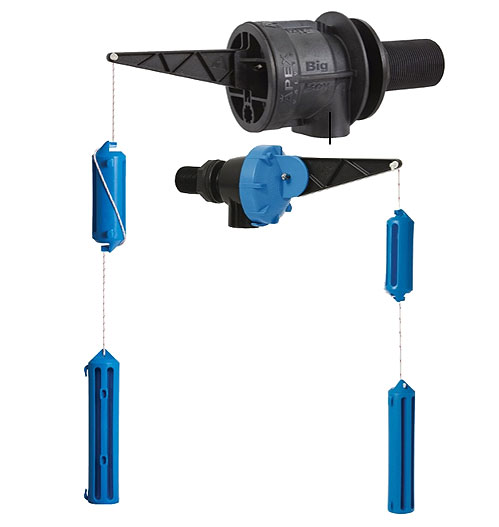

Automatic Top-Up Mechanical Float Valve & Water Level Control Switch for FRP Tank by I Controls Solution Malaysia

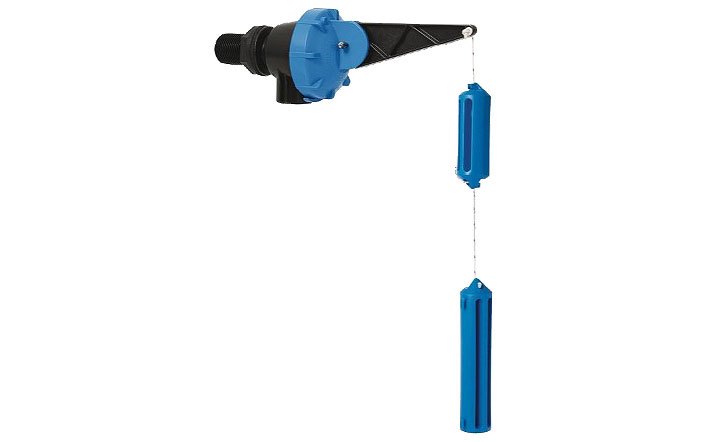

I-Rain Automatic Top-Up Mechanical Float Valve & Water Level Control Switch for Rainwater Harvesting Tanks by I Controls Solution Malaysia
PRODUCT SPECIFICATIONS & OVERVIEW

I-RAIN® Top-up Device

Available Models: DN20 / DN32 / DN50

The I-RAIN® Top-up Device is an engineered mechanical refill mechanism designed to maintain minimum operating water levels in rainwater storage tanks. During low rainfall periods or dry spells, it automatically draws municipal mains water to guarantee an uninterrupted, reliable supply for toilet flushing, landscape irrigation, and industrial reuse.


Operating entirely via precision mechanical buoyancy and differential water levels, the system requires zero electrical wiring or external sensor controllers. Once rainfall replenishes the tank above the preset threshold, the high-volume inlet valve shuts off automatically to prevent unnecessary tap water consumption. Fully compliant with Malaysian SPAN water fittings guidelines and MSMA 2nd Edition standards, it features built-in air gap backflow prevention to safeguard municipal drinking water from contamination.


✓ High Durable ABS Material

✓ High Volume Water Inlet Control Device

✓ Variable Adjustment Between Water Levels

✓ Working Pressure 2 PSI ~ 150 PSI

COMPLETE SYSTEM INTEGRATION

Related System Solutions & Products

Explore complementary system components engineered to form a complete rainwater harvesting ecosystem.

I Controls Wasterwater & Rainwater Treatment System in Malaysia
WATER TREATMENT SYSTEM

Water Treatment System

Engineered multi-media pressure filtration systems designed to remove turbidity and impurities for industrial water reuse.

✓ Multi-Media Turbidity Removal

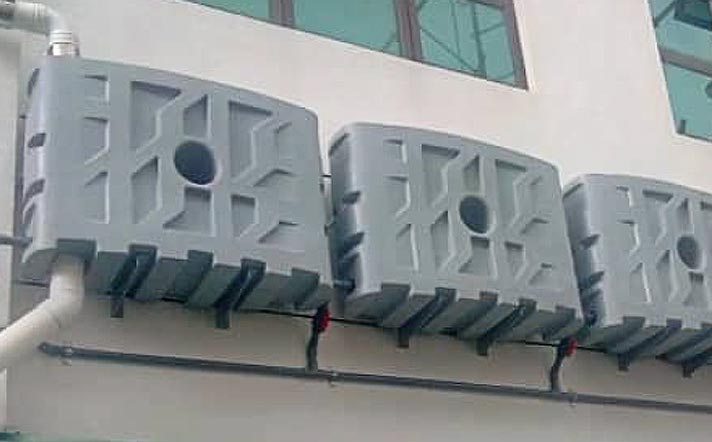

RISM 251 Dual Wall Rainwater Harvesting Tank Mounted on Exterior Wall and Concrete RC Slab in Malaysia
ALL-IN-ONE SYSTEM

PRISM 251 Integrated Water Tank

Malaysia’s first integrated industrial rainwater harvesting tank system seamlessly combining filtration, storage, and pumping.

✓ Integrated Filter, Tank & Pump System

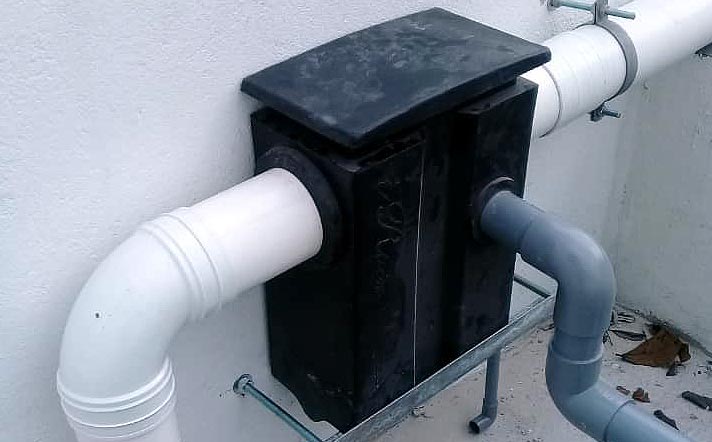

Automatic rainwater pre-screen filter providing physical interception of leaves, twigs, and coarse organic matter.
PRE-FILTRATION HARDWARE

I-RAIN® Pre-Screen Filter

First-stage physical debris separation intercepting leaves, twigs, and organic matter before rainwater enters storage tanks.

✓ 95%+ Leaf & Coarse Debris Separator
